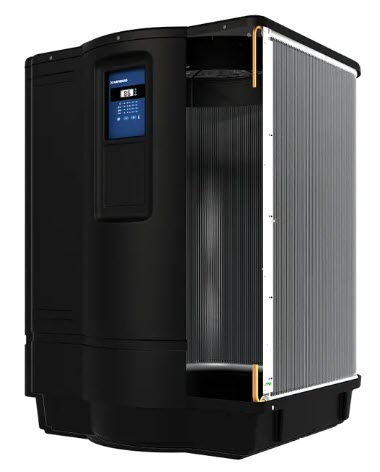

Hayward continues its position as the industry leader in innovation with the introduction of the Hayward HeatPro Series of heat pumps that utilize industry-first microchannel heat exchanger technology to get your pool water to the perfect temperature. Microchannel = More versatility! More energy efficiency! More affordable over time!
Features:
- Improved Heating in Cool Weather.: Patent pending defrost algorithm provides improved heating capacity at 50ºF and below so you can extend swim season.
- Robust Coil Structure: Protects against fin damage during installation and outdoor impacts
- Best in Class Corrosion Resistance: TCP coating developed by Naval Air Command for durability in the harshest climates
- Lasts Longer: Less performance degradation than traditional tube and fin
- Weight Reduction: Up to 50 lbs lighter than traditional tube and fin
- Less Complexity: 85% reduction in braze joints means less leak opportunities and increased efficiency
- Lower Panel Loading: 40 amp breakers can be used on 110k and 120k BTU/hr units
- Better for Everyone: Significant reduction in refrigerant used means lower environmental impact, reduced energy consumption in production and built & assembled in Nashville, TN
- Less Refrigerant: Significant reduction in refrigerant used means lower environmental impact
- Powerful Warranty: Backed by Hayward’s 5-year parts warranty
- AHRI Certification Certified for performance and value
- Heating Capacity - 110,000 BTU
- Heating COP - 5.7000
- Low Ambiant Operation - Yes
- Dimensions - 44" x 30.5" x 33.6"
- Parts Warranty - 5 Year
- Minimum Operating Temperature - 40 °F
- Max Fuse Breaker Size (Amps) - 40.0000
- Rated Voltage - 230V~ 60Hz 1 Ph
- Recommended Breaker Size - 40A
- Water Flow Rate - 30/75 GPM
- Water Connection Diameter - 2 x 2 1/2"
- Air Operating Temperature - 45°F- to 110°F
